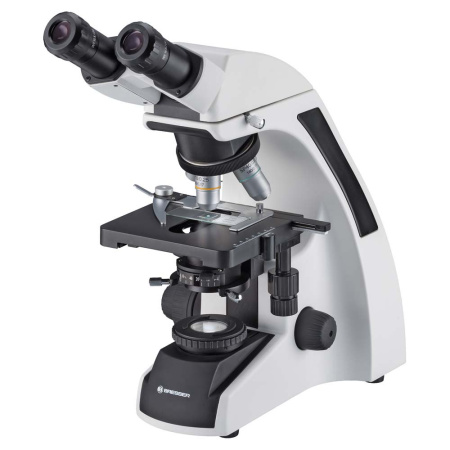

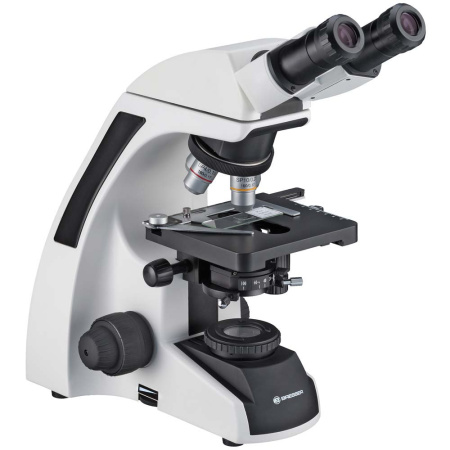

The New BRESSER Science TFM-201 is a binocular microsscope, which is equipped with semiplan objectives. The WF 10x eyepieces offer a large visual field of 20mm. The interpupillary distance can be adjusted from ca. 55mm to 75mm. Dioptre adjustments are possible with both eyepieces.The bright and durable LED illumination is dimmable and also very practical for darkfield microscopy*. Very versatile power supply system via USB port and cable or mains adapter (both included).The Köhler illumination is regulable with the built-in luminous-field diaphragm and the vertically and horizontally adjustable Abbe condenser (numerical aperture 1.25, with iris diaphragm). An imprint of the different possible magnifications on the condenser makes the adjustment of the iris diaphragm very fast and precise.Coaxial pinions drive the stage and focus which enables ergonomic operation of the microscope.
Features:- Semiplan objectives: 4x, 10x, 40x, 100x (oil)- WF 10x eyepieces with large visual field (20mm)- Köhler illumination with integrated luminous-field diaphragm- Coaxial pinions for stage and focus adjustments- Durable 3W LED illumination (dimmable)Specifications:Field of application:- Education- Biology- Botany- Research- Laboratory-Focus Group:- Experts- Advanced Amateurs- Professional users- Science and Research- Product Family: Transmitted light microscope-Optical Specifications:- Optical design: Biological- Magnification from: 40- Magnification up to: 1000- Diopter setting: ✓-Electronics, Hardware & Software:- Lighting5: Transmitted light- Dimmer: Dimmable lighting-General Technical Data:- Eyepiece Barrel Diameter: 30 mm- Interpupilar distance min.: 55 mm- Interpupilar distance max.: 75 mm- XY cross stage: High End XY Stage with single hand operation- Extended warranty: 10 years-Dimensions & Weights:- Total length: 390 mm- Total width: 205 mm- Total height: 395 mm- Net Weight total (incl. accessories): 6.34 kg
